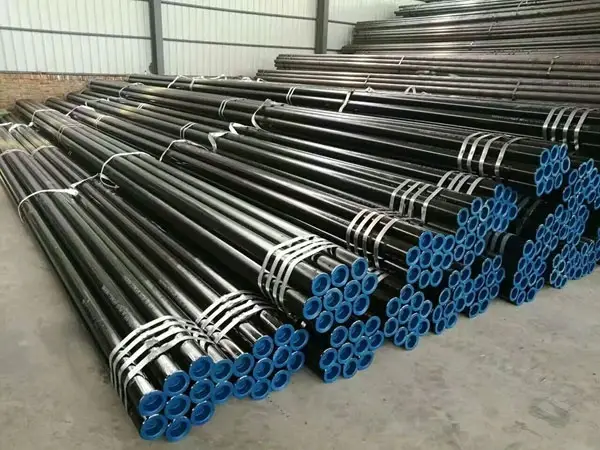

APL5L Line Pipe
APL5L Line Pipe
APL5L Line Pipe
APL5L Line Pipe
APL5L Line Pipe

APL5L Line Pipe

Product: Line Pipe, API Line Pipe, Seamless Line Pipe, Carbon Steel Line Pipe
Application: For Transportation in petroleum and natural gas industries
Size: OD: 73-630mm
WT: 6-35mm
LENGTH: 5.8/6/11.8/12m
Pipe Standard: API 5L  PSL1/PSL2    Gr.A,Gr.B,X42,X46,X52,X56,X60,X65,X70
API 5L  PSL1/PSL2    L210,L245,L290,L320,L360,L390,L415,L450,L485
Inquiry
Send Email
  • Products details
  • Tolerance table
  • Chemical composition
  • Inquiry
  • Specification

APL5L Line Pipe Introduction

Product:

Line Pipe, API Line Pipe, Seamless Line Pipe, Carbon Steel Line Pipe

Application:

For Transportation in petroleum and natural gas industries

Size:

OD: 73-630mm

WT: 6-35mm

LENGTH: 5.8/6/11.8/12m

Pipe Standard:

API 5L  PSL1/PSL2    Gr.A,Gr.B,X42,X46,X52,X56,X60,X65,X70

API 5L  PSL1/PSL2    L210,L245,L290,L320,L360,L390,L415,L450,L485


Line Pipe Standard

Standard Grade Chemical Components (%)
Mechanical Properties
C
Si
Mn
P S
Tensile STrength(Mpa)
Yield STrength(Mpa)
API 5L PSL1 A 0.22
- 0.90
0.030
0.030
≥331
≥207
B
0.28
- 1.20 0.030
0.030
≥414
≥241
X42
0.28
- 1.30 0.030
0.030
≥414
≥290
X46
0.28
- 1.40 0.030
0.030
≥434
≥317
X52
0.28
- 1.40
0.030
0.030
≥455
≥359
X56
0.28
- 1.40
0.030
0.030
≥490
≥386
X60
0.28
- 1.40
0.030
0.030
≥517
≥448
X65
0.28
- 1.40
0.030
0.030
≥531
≥448
X70
0.28
- 1.40
0.030
0.030
≥565
≥483
API 5L PSL2 B
0.24
- 1.20
0.025
0.015
≥414
≥241
X42
0.24
- 1.30
0.025
0.015
≥414
≥290
X46
0.24
- 1.40
0.025
0.015
≥434
≥317
X52
0.24
- 1.40
0.025
0.015
≥455
≥359
X56
0.24
- 1.40
0.025
0.015
≥490
≥386
X60
0.24
- 1.40
0.025
0.015
≥517
≥414
X65
0.24
- 1.40
0.025
0.015
≥531
≥448
X70
0.24
- 1.40
0.025
0.015
≥565
≥483
X80
0.24
- 1.40
0.025
0.015
≥621
≥552

Types of API 5L Line Pipe

  • API 5L  Seamless Pipe
  • API 5L Welded Line Pipe
  • API 5L ERW Line Pipe
  • API 5L DSAW Line Pipe
  • API 5L LSAW Line Pipe
  • Process
Manufacturing process starts with the collection of raw materials from the reliable market. We use sophisticated and modern methods and tools to manufacture the pipes. The raw materials and all the tools are being certified according to the different sets of quality standards. For 100% smoothness and thickness, the pipes go on through many stages.
Moreover, we have professional experts to look after the manufacturing process that has excellent knowledge about the manufacturing of pipes. They make the employees work efficiency in producing good quality of pipes. The ranges are kept according to the national and international quality standards and also in accordance with the manufacturing norms used for manufacturing the pipes.

  • Tests

Inspection Services

  • EMI
  • Ultrasonic (UT)
  • Phased Array
  • Wall thickness measuring
  • Magnetic particle
  • Ring and bevel
  • Weldline
  • Full-length drift (FLD)
  • Special end area (SEA)
  • Tube body—grade
  • Packing & Delivery

The delivering time depends on the available stock require as per order. We use high speedy transportation facility for delivery of the pipes to avoid unnecessary delays and damages. Our clients are ensured about the safe and secure delivery of their orders in accordance with the specified time period.

line pipe

APL5L Line Pipe APL5L Line Pipe APL5L Line Pipe

  • Tolerance table

API 5L Steel Pipe Tolerance on Dimensions

Standard

Out Diameter
Wall Thickness
API 5L
Tolerance
Tolerance
D<60.3
+0.41mm, -0.80mm
+15.0%, -12.5%
D≥60.3
+0.75%D, -0.75%D
+15.0%, -12.5%
  • Chemical composition

Chemical Analysis (%) of API 5L Line Pipe

Standard

Class

Grade


Yield strength not less than (MPa)

Tensile strength (MPa)

Elongation(%)

Y.S/T.S

API SPEC 5L ISO 3183

PLS1

L245B

min

245

415

b

-

L290X42

min

290

415

b

-

L320X46

min

320

435

b

-

L360X52

min

360

460

b

-

L390X56

min

390

490

b

-

L415X60

min

415

520

b

-

L450X60

min

450

535

b

-

L485X70

min

485

570

b

-

PLS2

L245N BN

min

245

415

b

-

L245M BM

max

450

760

b

0.93

L290NX42N

min

290

415

b

-

L290MX42M

max

495

760

b

0.93

L320NX46N

min

320

435

b

-

L320MX46M

max

525

760

b

0.93

L360NX52N

min

360

460

b

-

L360MX52M

max

530

760

b

0.93

L390NX56N

min

390

490

b

-

L390MX56M

max

545

760

b

0.93

L415NX60N

min

415

520

b

-

L415MX60M

max

565

760

b

0.93

L450MX65M

min

450

535

b

-

max

600

760

b

0.93

L485MX70M

min

485

570

b

-

max

635

760

b

0.93

L555MX80M

min

555

625

b

-

max

705

825

b

0.93


Mechanical Properities of API 5L Line Pipe

Standard

Type of pipe

Class

Grade

C

Si

Mn

P

S

V

Nb

Ti

max

max

max

max

max

max

max

max

API SPEC 5L

SMLS

PLS1

L245 B L290 X42 L320 X46 L360 X52 L390 X56 L415 X60 L450 X65 L485 X70 L245N BN

0.28 0.28 0.28 0.28 0.28 0.28 0.28 0.28 0.24

0.4

1.20 1.30 1.40 1.40 1.40 1.40 1.40 1.40 1.20

0.030 0.030 0.030 0.030 0.030 0.030 0.030 0.030 0.025

0.030 0.030 0.030 0.030 0.030 0.030 0.030 0.030 0.015

———

———

0.04

PLS2

L290N X42N

0.24

0.4

1.2

0.025

0.015

0.06

0.05

0.04

L320N X46N

0.24

0.4

1.4

0.025

0.015

0.07

0.05

0.04

L360N X52N

0.24

0.45

1.4

0.025

0.015

0.1

0.05

0.04

L390N X56N

0.24

0.45

1.4

0.025

0.015

0.1

0.05

0.04

L415N X60N

0.24

0.45

1.4

0.025

0.015

0.1

0.05

0.04

WELD

PLS1

L245 B

0.26

-

1.2

-

0.03

0.03

-

-

L290 X42

0.26

-

1.3

-

0.03

0.03

-

-

L320 X46

0.26

-

1.4

-

0.03

0.03

-

-

L360 X52

0.26

-

1.4

-

0.03

0.03

-

-

L390 X56

0.26

-

1.4

-

0.03

0.03

-

-

L415 X60

0.26

-

1.4

-

0.03

0.03

-

-

L450 X65

0.26

-

1.45

-

0.03

0.03

-

-

L485 X70

0.26

-

1.65

-

0.03

0.03

-

-

PLS2

L245M BM

0.22

0.45

1.2

0.025

0.015

0.05

0.05

0.04

L290M X42M

0.22

0.45

1.3

0.025

0.015

0.05

0.05

0.04

L320M X46M

0.22

0.45

1.3

0.025

0.015

0.05

0.05

0.04

L360M X52M

0.22

0.45

1.4

0.025

0.015

-

-

-

L390M X56M

0.22

0.45

1.4

0.025

0.015

-

-

-

L415M X60M

0.12

0.45

1.6

0.025

0.015

-

-

-

L450M X65M

0.12

0.45

1.6

0.025

0.015

-

-

-

L485M X70M

0.12

0.45

1.7

0.025

0.015

-

-

-

L555M X80M

0.12

0.45

1.85

0.025

0.015

-

-

-
