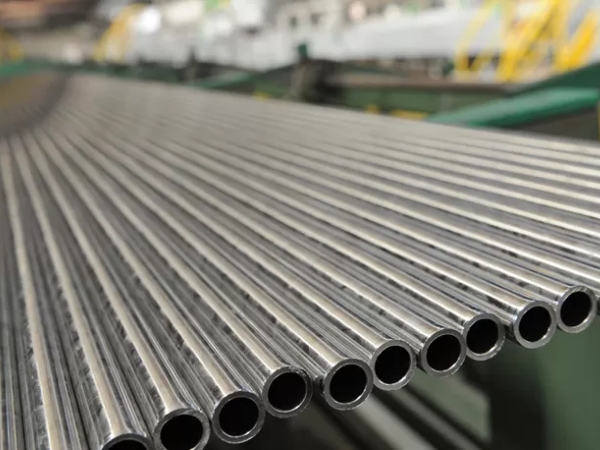

Duplex Stainless Steel Pipe is used for versatile industries. You may learn about its specification such as schedule chart, pressure rating in this passage.
Duplex Stainless Steel Pipe Specification
|
Size |
1/2″NB - 12“NB IN |
|
Standards |
ASTM A 790 ASTM A 789 ASME SA 790 ASME SA 789 |
|
Grades |
Duplex UNS S31803 Duplex UNS S32205 |
|
Length |
Single Random, Double Random & Cut Length |
|
Type |
Seamless / ERW / Welded / Fabricated |
|
End |
Plain End, Bevelled End, Threaded |
Duplex Stainless Steel Pipe Schedule Chart
|
1/8" IPS(.405" O.D.) |
3 1/2" IPS( 4.000" O.D.) |
|
Seamless Pipes, SCH 40, 80 |
Pipes, SCH 10, 40, 80, 160, XXH |
|
1/4" IPS(.540" O.D.) |
4" IPS(4.500" O.D.) |
|
Pipes, SCH 10, 40, 80 |
Seamless Pipes, SCH 10, 40, 80, 160, XXH |
|
3/8" IPS(.675" O.D.) |
5" IPS( 5.563" O.D.) |
|
Seamless Pipes, SCH 10, 40, 80 |
Pipes, SCH 10, 40, 80, 160, XXH |
|
1/2" IPS(.840" O.D.) |
6" IPS(6.625" O.D.) |
|
Seamless Pipes, SCH 5, 10, 40, 80, 160, XXH |
Seamless Pipes, SCH 5, 10, 40, 80, 120, 160, XXH |
|
3/4" IPS(1.050" O.D.) |
8”IPS(8.625" O.D.) |
|
Pipes, SCH 10, 40, 80, 160, XXH |
Stainless Pipes, SCH 5, 10, 40, 80, 120, 160, XXH |
|
1" IPS:(1.315′O.D.) |
10" IPS(10.750" O.D.) |
|
Seamless Pipes, SCH 5, 10, 40, 80, 160, XXH |
Pipes, SCH 10, 20, 40, 80 (.500), TRUE 80(.500) |
|
1-1/4" IPS(1.660" O.D.) |
12" IPS(12.750" O.D.) |
|
Seamless Pipes, SCH 10, 40, 80, 160, XXH |
Pipes, SCH 10, 20, 40(.375), TRUE40(.406), SCH80(.500) |
|
1-1/2" IPS(1.900" O.D.) |
14" IPS(14.000" O.D.) |
|
Seamless Pipes, SCH 10, 40, 80, 160, XXH |
Pipes, SCH10 (.188), SCH40 (.375) |
|
2" IPS(2.375" O.D.) |
16" IPS(16.000" O.D.) |
|
Seamless Pipes, SCH 10, 40, 80, 160, XXH |
Pipes, SCH10(.188), SCH40(.375) |
|
2 1/2" IPS(2.875" O.D.) |
18" IPS (18.000" O.D.) |
|
Seamless Pipes, SCH 10, 40, 80, 160, XXH |
Pipes, SCH-40 (.375) |
|
3" IPS( 3.500" O.D.) |
|
|
Seamless Pipes, SCH 5, 10, 40, 80, 160, XXH |
|
Duplex Stainless Steel Pipe Wall Thickness
|
Sr. No. |
Product Description |
Wall Thickness, WT (in mm) |
|
1 |
Duplex Stainless Steel Round Pipe/Tube |
0.5mm-30mm |
|
2 |
Duplex Stainless Steel Square Pipe/Tube |
0.5mm-30mm |
|
3 |
Duplex Stainless Steel Rectangular Pipe/Tube |
0.5mm-30mm |
|
4 |
Duplex Stainless Steel Colour Coated Pipe/Tube |
0.5mm-30mm |
|
5 |
Duplex Stainless Steel Ornamental Tubes |
0.5mm-2.0mm |
|
6 |
Duplex Stainless Steel Electropolished Pipes/Tubes |
0.5mm-30mm |
|
7 |
Duplex Stainless Steel Slot Round Pipe/Tube |
0.5mm-2.0mm |
|
8 |
Duplex Stainless Steel Triangle Tube |
0.5mm-3.0mm |
|
9 |
Duplex Stainless Steel Hexagonal Tube |
0.5mm-2.0mm |
|
10 |
Duplex Stainless Steel Handrail Tube |
0.5mm-2.0mm |
|
11 |
Duplex Stainless Steel U Shaped Tube |
0.5mm-2.0mm |
|
12 |
Duplex Thin-Wall Stainless Steel Tube |
0.5mm-2.0mm |
|
13 |
Duplex Inner/Outside Polished Stainless Steel Tube, Pipes |
1.0mm–5mm |
|
14 |
Duplex Stainless Steel Capillary Tube |
0.08mm–1.2mm |
|
15 |
Duplex Stainless Steel Seamless Tube |
0.8mm–30mm |
Duplex Stainless Steel Pipe Pressure Rating
|
Pipe O.D. |
Wall Thickness Of Pipe (Inches) |
|||||||
|
.028 |
.035 |
.049 |
.065 |
.083 |
.095 |
.109 |
.120 |
|
|
Working Pressure (Psig) |
||||||||
|
1/8 |
7900 |
10100 |
|
|
|
|
|
|
|
1/4 |
3700 |
4800 |
7000 |
9500 |
|
|
|
|
|
5/16 |
|
3700 |
5400 |
7300 |
|
|
|
|
|
3/8 |
|
3100 |
4400 |
6100 |
|
|
|
|
|
1/2 |
|
2300 |
3200 |
4400 |
|
|
|
|
|
3/4 |
|
|
2200 |
3000 |
4000 |
4600 |
|
|
|
1 |
|
|
|
2200 |
2900 |
3400 |
3900 |
4300 |
Duplex Stainless Steel Pipe Roughness
|
Outside Surface Roughness |
Inside Surface Roughness |
|
RA 20 defect level max. 50μm |
RA 20 defect level max. 20μm |
