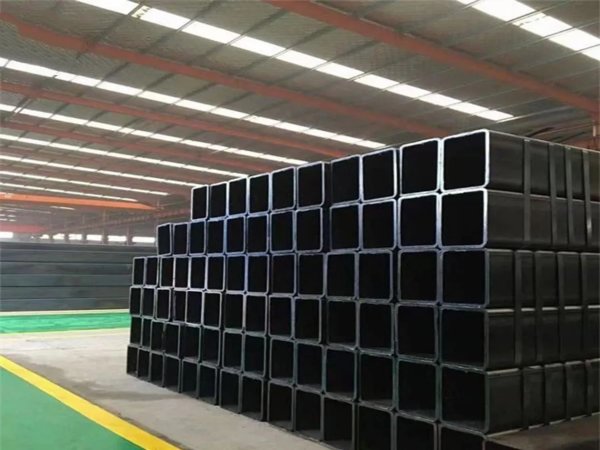

EN 10219 S235JRH Square Hollow Section (SHS) is a cold-formed welded structural steel tube manufactured according to the European standard EN 10219. As one of the most widely used structural steel grades in Europe, S235JRH provides an excellent combination of strength, weldability, and cost efficiency for general construction and engineering applications.
Thanks to its reliable mechanical properties and easy fabrication, S235JRH square hollow sections are widely used in steel structures, industrial buildings, transportation equipment, machinery manufacturing, and renewable energy projects.
EN 10219 covers cold-formed welded structural hollow sections manufactured from non-alloy and fine-grain steels. Unlike EN 10210 hot-finished hollow sections, EN 10219 products are produced through cold-forming and welding processes.
The designation S235JRH means:
S = Structural Steel
235 = Minimum yield strength of 235 MPa
JR = Impact energy ≥ 27 J at +20°C
H = Hollow Section
This grade is primarily designed for structural applications operating under normal temperature conditions.
|
Item |
Description |
|
Standard |
EN 10219 |
|
Grade |
S235JRH |
|
Product Type |
Square Hollow Section (SHS) |
|
Manufacturing Process |
Cold Formed Welded (ERW/HFI) |
|
Size Range |
20 × 20 mm – 400 × 400 mm |
|
Wall Thickness |
0.5 mm – 25 mm |
|
Length |
6000 mm – 14000 mm |
|
Surface Finish |
Black, Oiled, Varnished, Pre-Galvanized, Hot-Dip Galvanized |
|
Certification |
EN 10204 2.2 / 3.1, CE, UKCA |
S235 Material Grade Comparison
|
Grade |
Impact Test Temperature |
Minimum Impact Energy |
Typical Applications |
|
JR |
+20°C |
27 J |
Indoor structures, normal climates |
|
J0 |
0°C |
27 J |
General outdoor structures |
|
J2 |
-20°C |
27 J |
Cold-weather applications |
|
K2 |
-20°C |
40 J |
Critical safety structures |
S235JRH guarantees impact toughness at room temperature (+20°C), while S235J2H guarantees impact performance at -20°C. For projects located in cold climates or winter construction environments, S235J2H is generally recommended.
Chemical Composition of S235JRH
|
Grade |
C (%) |
Mn (%) |
P (%) |
S (%) |
N (%) |
CEV (%) |
|
S235JRH |
≤0.17–0.20 |
≤1.40 |
≤0.040 |
≤0.040 |
≤0.009 |
≤0.44 |
The low carbon equivalent value contributes to excellent weldability and fabrication performance.
Mechanical Properties of S235JRH
|
Thickness |
Yield Strength (MPa) |
Tensile Strength (MPa) |
Elongation (%) |
Impact Test |
|
≤16 mm |
≥235 |
360–510 |
≥26 |
27 J @ +20°C |
|
16–40 mm |
≥225 |
360–510 |
≥26 |
27 J @ +20°C |
|
40–70 mm |
≥215 |
360–510 |
≥24 |
27 J @ +20°C |
Available Size Range
EN 10219 S235JRH square hollow sections are available in a wide range of dimensions:
|
Section Size Range |
Typical Wall Thickness |
|
20 × 20 mm – 100 × 100 mm |
0.5 – 10 mm |
|
120 × 120 mm – 200 × 200 mm |
5 – 16 mm |
|
250 × 250 mm – 400 × 400 mm |
6.3 – 25 mm |
Full size and weight charts are available upon request.
|
Property |
S235JRH |
S355JRH |
|
Yield Strength |
235 MPa |
355 MPa |
|
Tensile Strength |
360–510 MPa |
490–630 MPa |
|
Elongation |
24–26% |
20% |
|
Impact Test Temperature |
+20°C |
+20°C |
|
Weldability |
Excellent |
Good |
|
Typical Application |
General Structures |
Heavy-Duty Structures |
|
Relative Cost |
Lower |
Higher |
For projects requiring greater load-bearing capacity, S355JRH may be preferred. For standard structural applications, S235JRH offers a more economical solution.
1. Cost-Effective Structural Material
S235JRH is one of the most economical grades under EN 10219, making it ideal for projects where cost efficiency is a priority.
2. Excellent Weldability
The low carbon content and carbon equivalent allow for easy welding using conventional welding methods with minimal risk of cracking.
3. Good Formability
S235JRH can be easily:
Cut
Drilled
Bent
Stamped
Welded
Fabricated
This simplifies both workshop processing and on-site construction.
4. Multiple Certification Options
Available certifications include:
EN 10204 Type 2.2
EN 10204 Type 3.1
CE Marking
UKCA Certification
Typical Applications
S235JRH Square Hollow Sections are widely used in:
Construction Industry
Industrial buildings
Warehouses
Steel frameworks
Scaffolding systems
Machinery Manufacturing
Agricultural machinery
Construction equipment
Material handling systems
Transportation Equipment
Truck chassis
Trailer structures
Bus frames
Renewable Energy
Solar mounting structures
Solar carports
PV tracking systems
General Fabrication
Staircases
Handrails
Walkways
Fencing
Billboard structures
Procurement Recommendations
Before ordering S235JRH square hollow sections, consider the following:
Confirm impact toughness requirements based on service temperature.
Request EN 10204 material certificates.
Verify dimensional tolerances upon delivery.
Consider hot-dip galvanizing for outdoor environments.
Because S235JRH is carbon steel, additional corrosion protection is recommended for long-term outdoor service.
EN 10219 S235JRH Square Hollow Section is one of the most popular cold-formed structural steel products for general engineering and construction applications. Its combination of economic value, good mechanical properties, excellent weldability, and broad availability makes it a preferred choice for structural projects worldwide.
Whether used in industrial buildings, machinery, transportation equipment, or renewable energy systems, S235JRH provides a dependable and cost-effective structural solution.
1. What is EN 10219 S235JRH Square Hollow Section?
It is a cold-formed welded structural steel tube with a minimum yield strength of 235 MPa, manufactured according to EN 10219.
2. Is S235JRH suitable for welding?
Yes. Its low carbon content provides excellent weldability and fabrication performance.
3. What is the difference between S235JRH and S355JRH?
S355JRH offers higher strength, while S235JRH is more economical for general structural applications.
4. Can S235JRH be galvanized?
Yes. Hot-dip galvanizing is commonly used to improve corrosion resistance in outdoor environments.
